EEL3304: Quiz 3

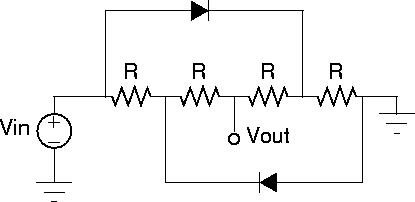

1. Compute as a function of for the following circuit. You can model each diode as an ideal diode. Justify your answer. (Hint: Make sure you specify for each possible value of ).



2. EXTRA CREDIT, OPTIONAL QUESTION: Derive the current-voltage relationship of the following compound device (i.e. express the current between the terminals as a function of the voltage difference). Give your result in simplest form and sketch the relationship. Assume that the current through a diode is given by .
